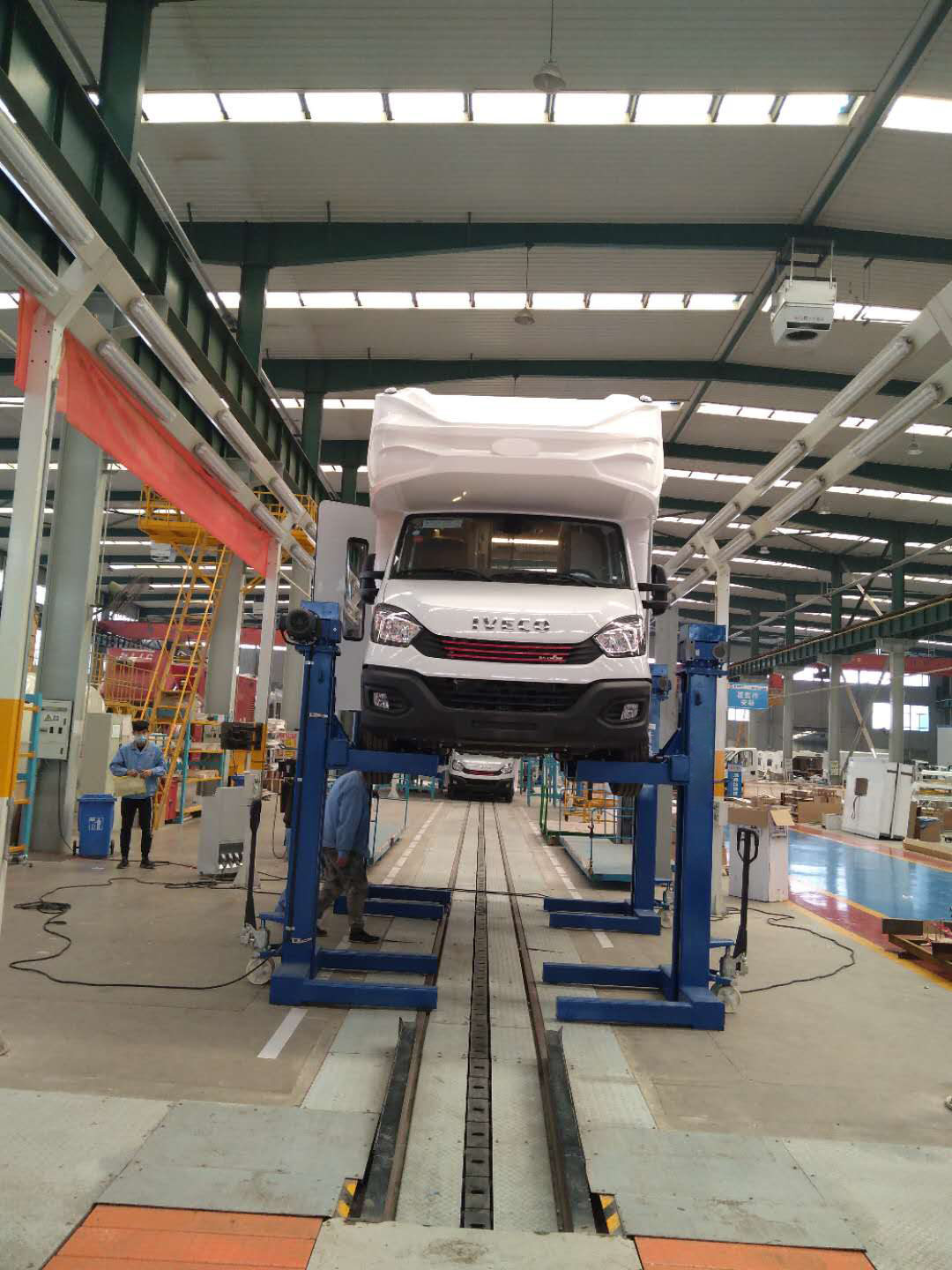

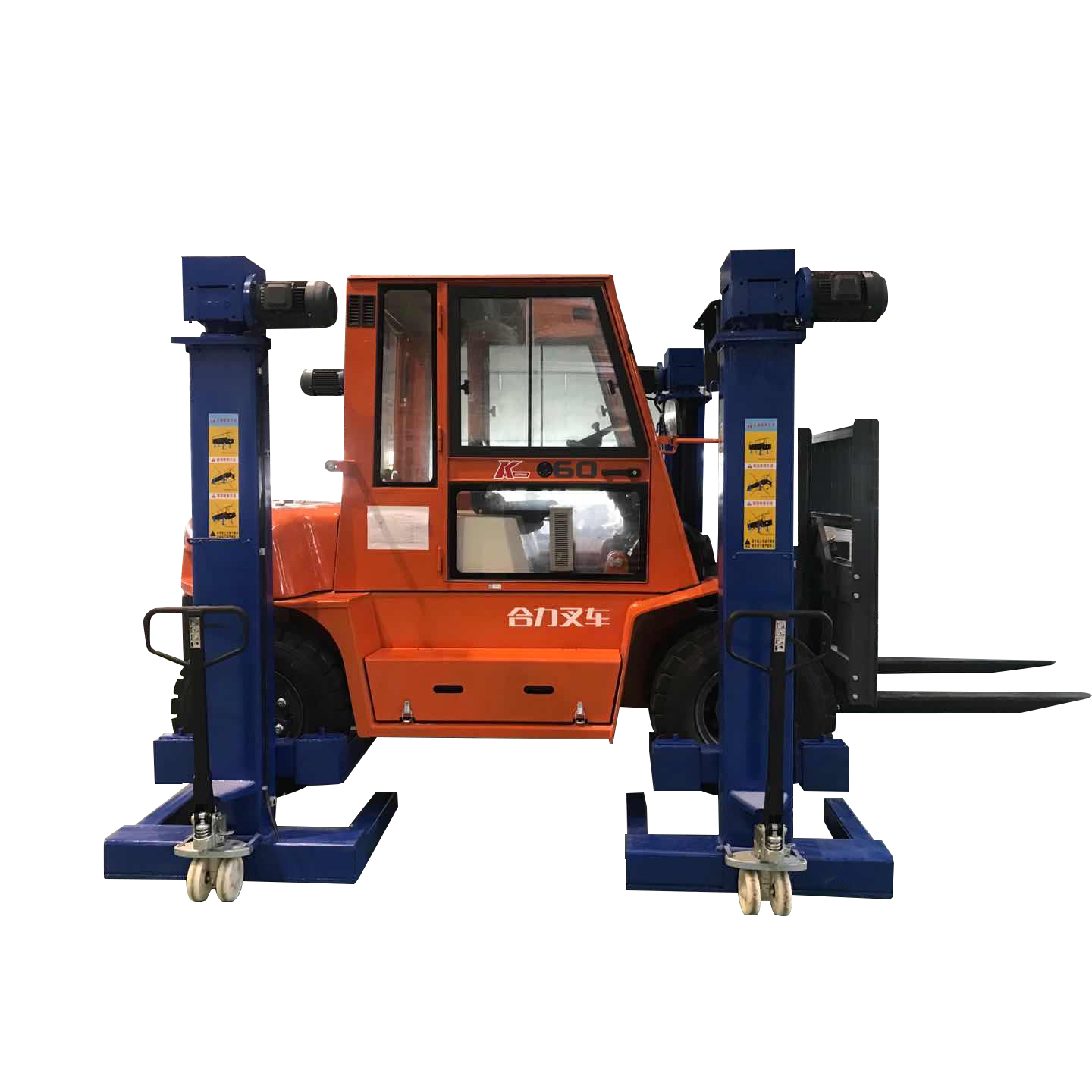

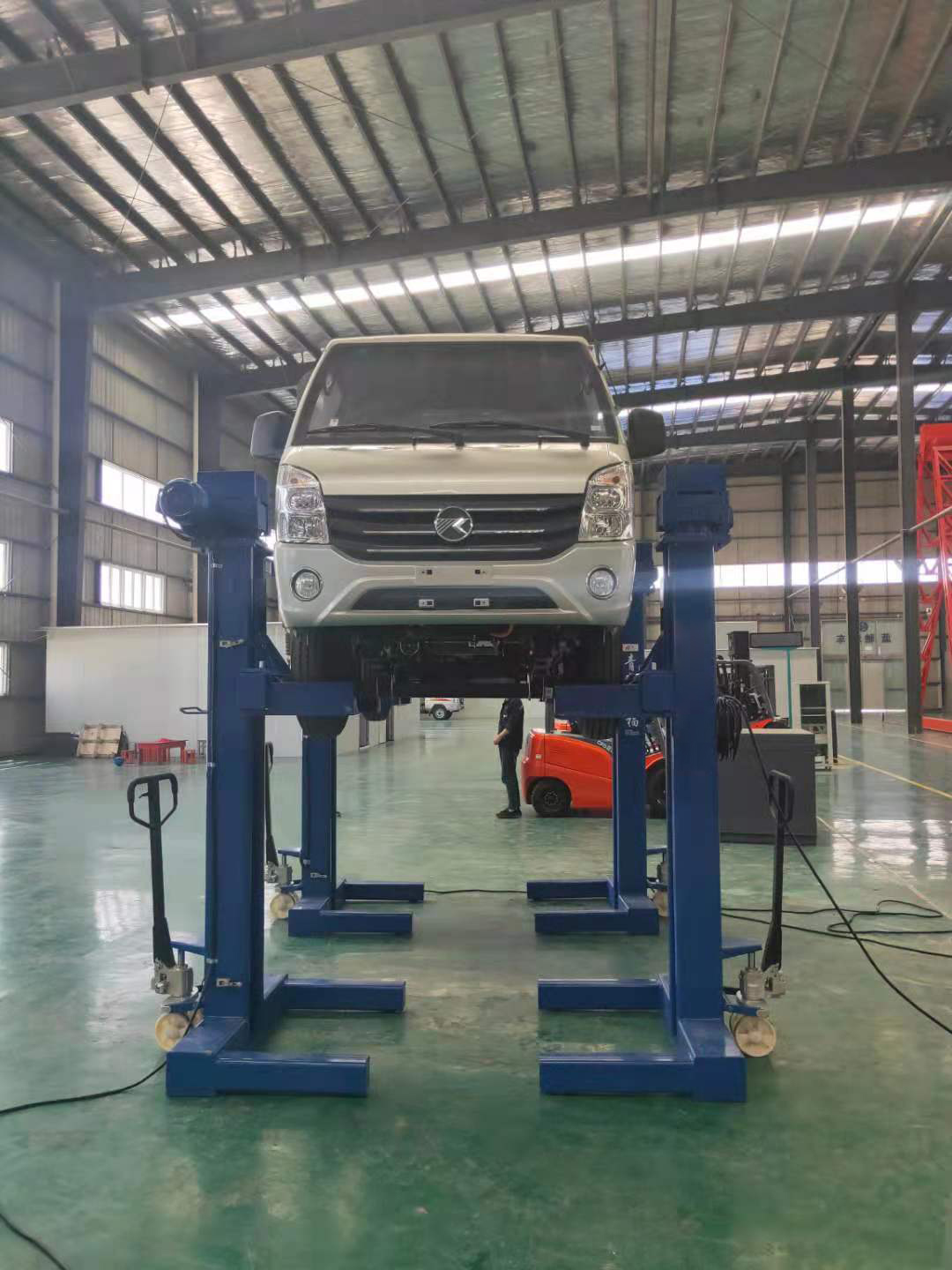

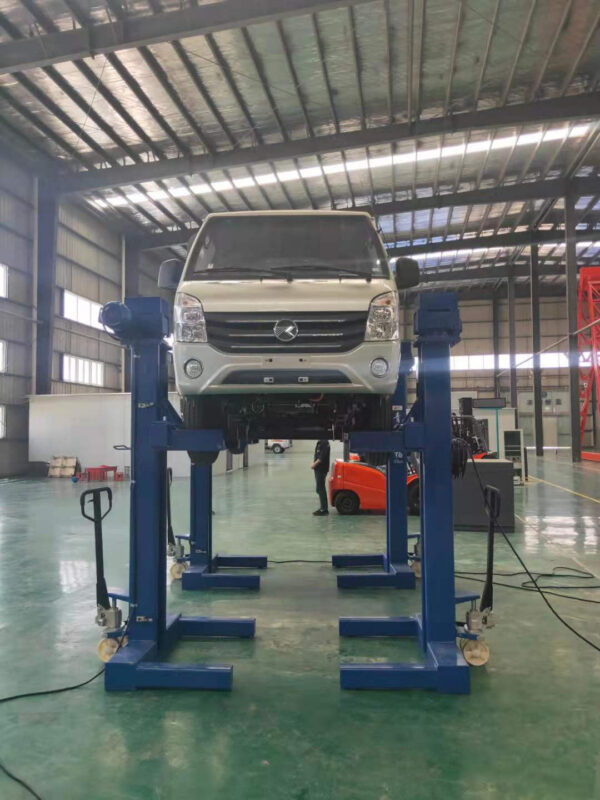

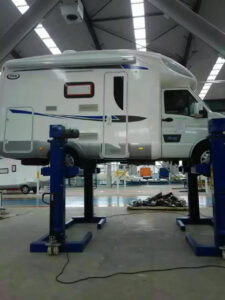

Forklift/Mini van column lift

1. With a high load capacity.
2.The spacing between the columns is adjustable, making it easy to use.
3.The column track is machined and formed at one time, with uniform load and more stable operation.
4. It adopts an electric mechanical system with externally guided lifting forks, allowing for a large carrying capacity.
5. It uses planetary cycloid pinwheel reducer (worm gear reducer), with the screw rotating and the nut driving the bracket to lift and lower the forks.
6. Humanized design, rational and aesthetical.

KEY FEATURES

– CE approved and certificated.
– Electro-mechanical drive, unique design.
– Large capacity 4 post with 10ton.
– Safety screw nut self locking structure.
– Rubber pad on lifting forks.
– Mobile hydraulic trolly to move the lift on tyres.
– The column track is machined and formed at one time, with uniform load and more stable operation.
– It adopts an electric mechanical system with internally guided lifting forks, allowing for a large carrying capacity.
– It uses planetary cycloid pinwheel reducer, with the screw rotating and the nut driving the bracket to lift and
lower the forks.
– Mechanical sychronization.
– Wired cable and control cabinet.
– Limit swith on both end for limiting stroke.
– Working nut and safety nut on each column
