KEY FEATURES
– Clear floor design, make it easier to operate on the floor.
– Adopt double cylinder, plate chain and wire rope balance system, the lift can be lifted smoothly.
– The sliding body is welded with all steel plates, which has excellent performance. The support arm is welded with external reinforcement ribs, which makes the support point more solid.
– Manual unlocking on both sides
– Standard 24v limit switch
– Symmetrical arm design
– Standard door protection rubber block.
– Passed 115% dynamic load test and 150% static load test.
– ISO9001 and CE certificated.
| Type | 2 Post Car Lift |
|---|---|
| Model | QJY3.5-2B |
| Capacity | 3.5/4/4.5T |
| Lifting Height | 1750mm |
| Weight | 600kg |
| Motor Power | 2.2kw |
| Input Voltage | 380v/220v |
| Certification | CE,ISO9001 |
| Warranty | 1 Year |

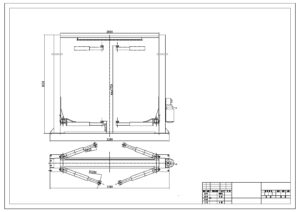

DRAWING

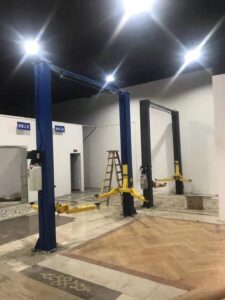

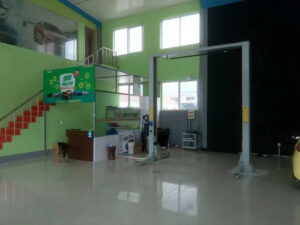

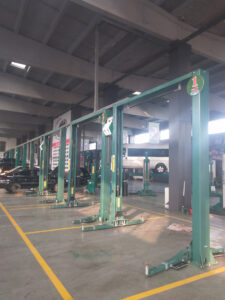

USER CASES
