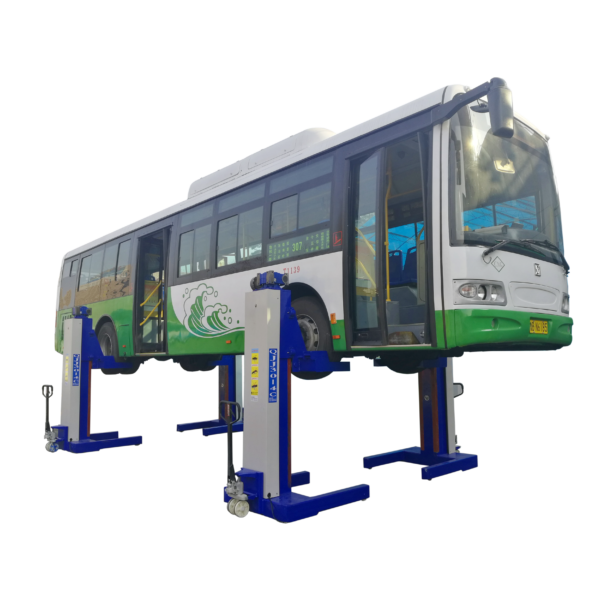

Type | Column Lift |
---|---|
Model | QJJ20/30-4C |
Capacity | 20/30T |
Lifting Height | 1500mm |
Weight | 4/4.6T |
Motor Power | 2.2*4/3*4kw |
Input Voltage | 380v/220v |
Certification | CE,ISO9001 |
Warranty | 1 Year |
1. With a high load capacity.
2.The spacing between the columns is adjustable, making it easy to use.
3.The column track is machined and formed at one time, with uniform load and more stable operation.
4. It adopts an electric mechanical system with externally guided lifting forks, allowing for a large carrying capacity.
5. It uses planetary cycloid pinwheel reducer (worm gear reducer), with the screw rotating and the nut driving the bracket to lift and lower the forks.
6. Humanized design, rational and aesthetical.
Type | Column Lift |
---|---|
Model | QJJ20/30-4C |
Capacity | 20/30T |
Lifting Height | 1500mm |
Weight | 4/4.6T |
Motor Power | 2.2*4/3*4kw |
Input Voltage | 380v/220v |
Certification | CE,ISO9001 |
Warranty | 1 Year |
