KEY FEATURES
– CE approved and certificated.
– Electro-hydraulic drive, unique design.
– Large capacity available from 3-6 ton
– Lifting height could be customised from 3-15 meters according to your place.
– Lifting platfrom could also be customised according to your place.
– Safety insurance locking device, mechanical lock on each post, safer and more reliable to use
– Pneumatic release for convinient operation.
– Independent hydraulic unit, no daily maintenance, easy to disassemble and easy to use
– The column is formed at one time, with high strength and longer durability
– Unique chain transmission mode, the lifting chain has high tensile strength, ensuring the safety of personal equipment
| Model | QJYS3-4B |
|---|---|
| Lifting capacity | 1000-8000kg |
| Lifting height | 2-15 Meters |
| Platform size | 6 M(L)X3.5M(W) |
| Min height | 200mm |
| Lifting speed | 4 M/Min |
| Drive model | Double Chain Hydraulic |
| Motor power | 3kw |
| Input voltage | 380/415v,50hz,3-phase |
| Warranty | 1 Year |
| Package | Plastic Foam, 20Container |

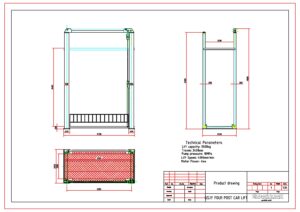

DRAWING
