KEY FEATURES
– CE approved and certificated.
– Electro-mechanical drive, unique design.
– Large capacity 2 sets with 20ton and 30ton.
– Safety screw nut self locking structure.
– Mobile in front and backward on railway.
– It uses planetary cycloid pinwheel reducer, with the screw rotating and the nut driving the bracket to lift and
lower the forks.
– Mechanical synchronization.
– Separated control box on machine.
– Limit switch on both end for limiting stroke.
– Working nut and safety nut on each column
– Easy conbination with 2, 3, 4 piece in one unit.
– could be controlled together or seperately.
| Type | Pit Car Lift |
|---|---|
| Model | QJJ20/30-4A |
| Capacity | 20/30T |
| Lifting Height | 500mm |
| Weigt | 2.2/3*2kw |
| Motor Power | 1.7/2T |
| Input Voltage | 380v/220v |

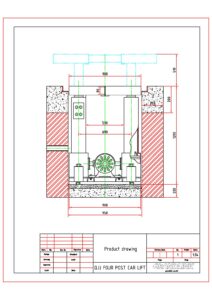

DRAWING

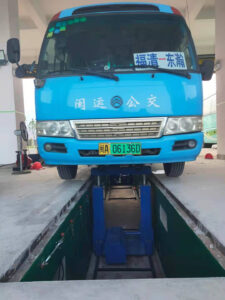

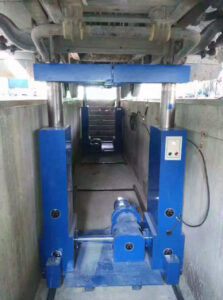

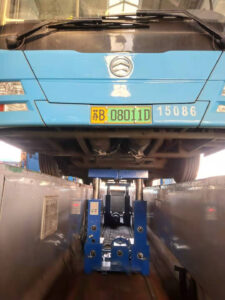

USER CASES
